PART NO . 94-100-v1

SIZE:L145-W112-H145mm

MAX VACUUM:-90KPa

FREE FLOW :13LPM

PART NO . 63-180-v1

SIZE:L112-W88-H117mm

MAX VACUUM:-85KPa

FREE FLOW :10LPM

PART NO . 94-100-v1

(94-100-v2)

SIZE:L175-W112-H145mm

MAX VACUUM:

-86KPa (-95KPa)

FREE FLOW :40LPM

（20LPM）

PART NO . 65-45-v1

SIZE:L150-W70-H110mm

MAX VACUUM:-85KPa

FREE FLOW :7LPM

PART NO . 96-280-v1

(96-280-v2)

SIZE:L215-W112-H145mm

MAX VACUUM:

-92KPa (-97KPa)

FREE FLOW :80LPM

（40LPM）

PART NO . 94-190-v2

SIZE:L175-W112-H150mm

MAX VACUUM:-97KPa

FREE FLOW :30LPM

PART NO . 96-300-v1

(96-300-v2)

SIZE:L215-W112-H145mm

MAX VACUUM:

-92KPa (-97KPa)

FREE FLOW :100LPM

（50LPM）

PART NO . 111-370-v1

(111-370-v2)

SIZE:L230-W130-H185mm

MAX VACUUM:-98KPa

FREE FLOW :100LPM

(50LPM)

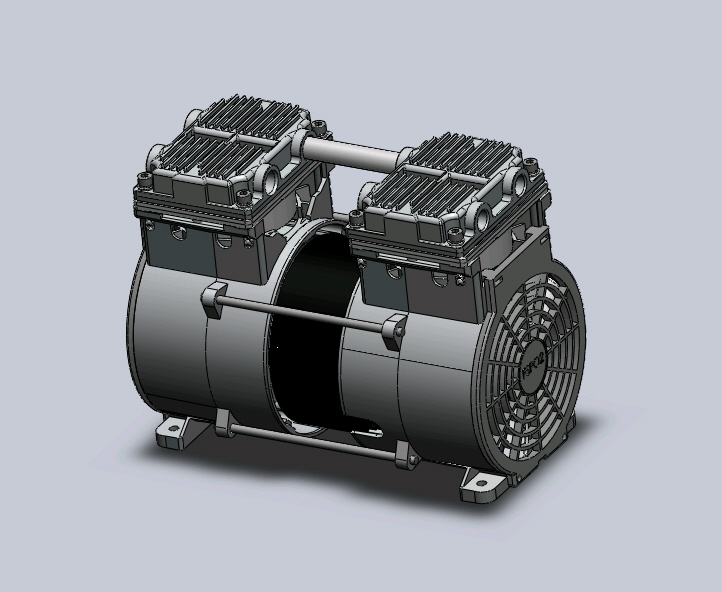

PART NO . 111-400-v1

(111-400-v2)

SIZE:L230-W130-H185mm

MAX VACUUM:-92KPa (-98KPA )

FREE FLOW :120LPM

(60LPM)

PART NO . 118-500-v1

(118-500-v2)

SIZE:L250-W130-H190mm

MAX VACUUM:-92KPa (-98KPA )

FREE FLOW :160LPM

(80LPM)

PART NO . 88-50-v1

(88-50-v2)

SIZE:170-W900-H126mm

MAX VACUUM:-90KPa (-98KPA )

FREE FLOW :22LPM

(11LPM)

PART NO . 118-600-v1

(118-600-v2)

SIZE:L250-W130-H190mm

MAX VACUUM:-92KPa (-98KPA )

FREE FLOW :180LPM

(90LPM)
